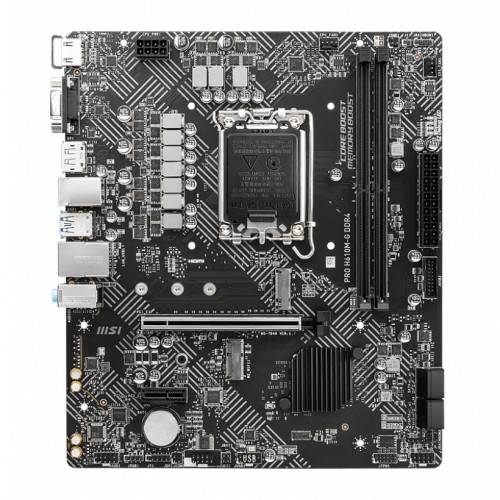

MSI PRO H610M-G DDR4 Micro-ATX Motherboard
Status: In Stock
Brand: MSI
Key Features:
- Key Features
- Model: PRO H610M-G DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Lightning Fast Experience: PCIe 4.0
- Core Boost, Memory Boost, Audio Boost
| Specification | Value |
|---|---|
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700 |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Type | DDR4 |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | Support up to 64GB |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort |
| VGA (s) | 1x VGA port |
| 1x VGA port | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| Manufacturing Warranty | 3 years |
Description:
MSI PRO H610M-G DDR4 Micro-ATX Motherboard
MSI PRO H610M-G DDR4 Micro-ATX Motherboard The MSI PRO H610M-G DDR4 features LGA1700 socket Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. MSI PRO H610M-G DDR4 motherboard comes with MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. The MSI PRO H610M-G DDR4 features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The MSI PRO H610M-G DDR4 motherboard comes with 3 years of warranty.
MSI PRO H610M-G DDR4 Micro-ATX Motherboard price in Bangladesh
Buy MSI PRO H610M-G DDR4 Micro-ATX Motherboard from Rahman Corporation. In Bangladesh, you can get original MSI PRO H610M-G DDR4 Micro-ATX Motherboard at the best price. We have a large collection of the latest MSI projectors to purchase. Order online or visit our showroom to get yours at the lowest price. The MSI PRO H610M-G DDR4 Micro-ATX Motherboard .
What is the price of MSI PRO H610M-G DDR4 Micro-ATX Motherboard in Bangladesh?
The latest price of MSI PRO H610M-G DDR4 Micro-ATX Motherboard in Bangladesh is ৳ 10,900.00. You can buy the MSI PRO H610M-G DDR4 Micro-ATX Motherboard at the best price from our website or visit any of our showrooms.
MSI PRO H610M-G DDR4 Micro-ATX Motherboard
MSI PRO H610M-G DDR4 Micro-ATX Motherboard The MSI PRO H610M-G DDR4 features LGA1700 socket Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. MSI PRO H610M-G DDR4 motherboard comes with MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. The MSI PRO H610M-G DDR4 features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays. The MSI PRO H610M-G DDR4 motherboard comes with 3 years of warranty.
