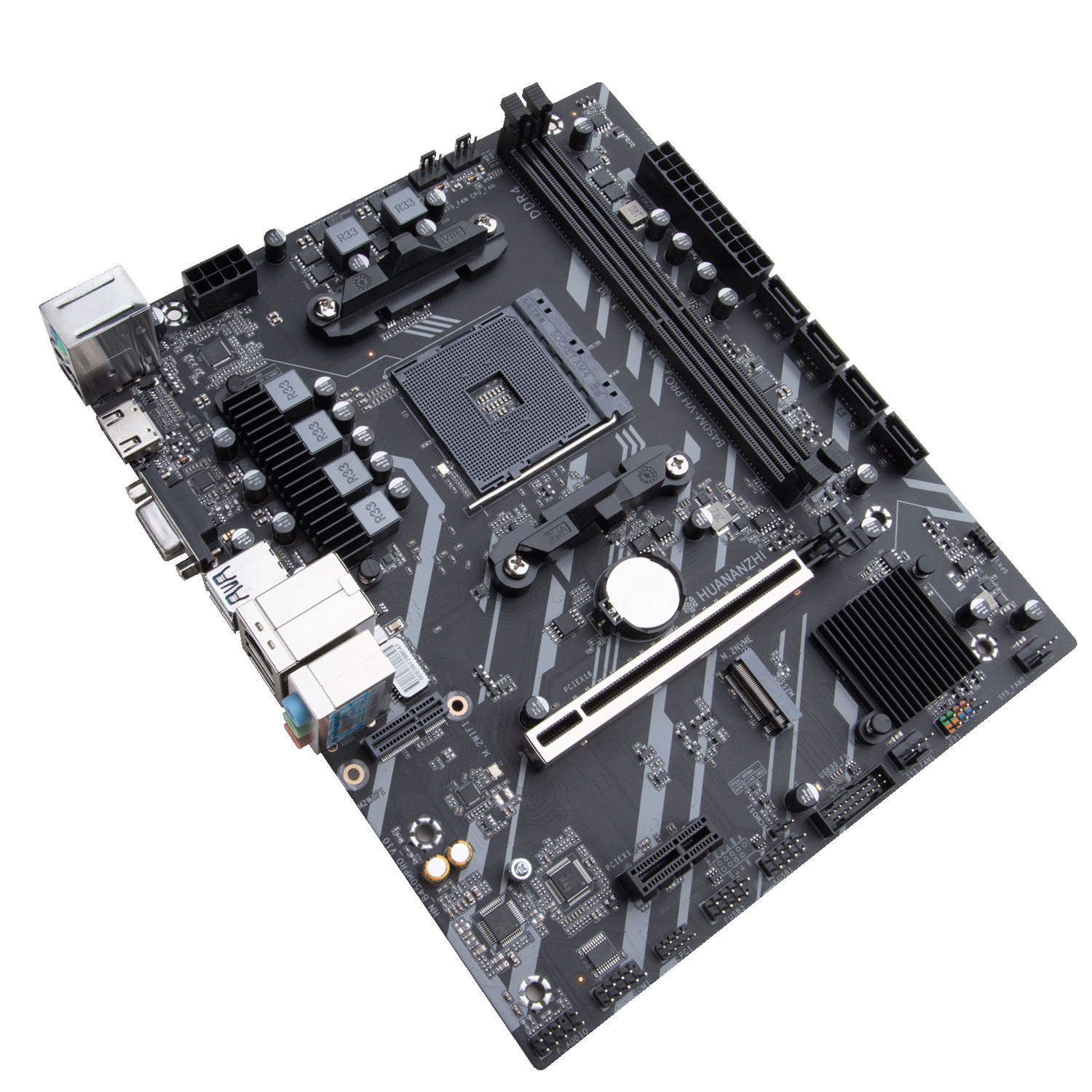

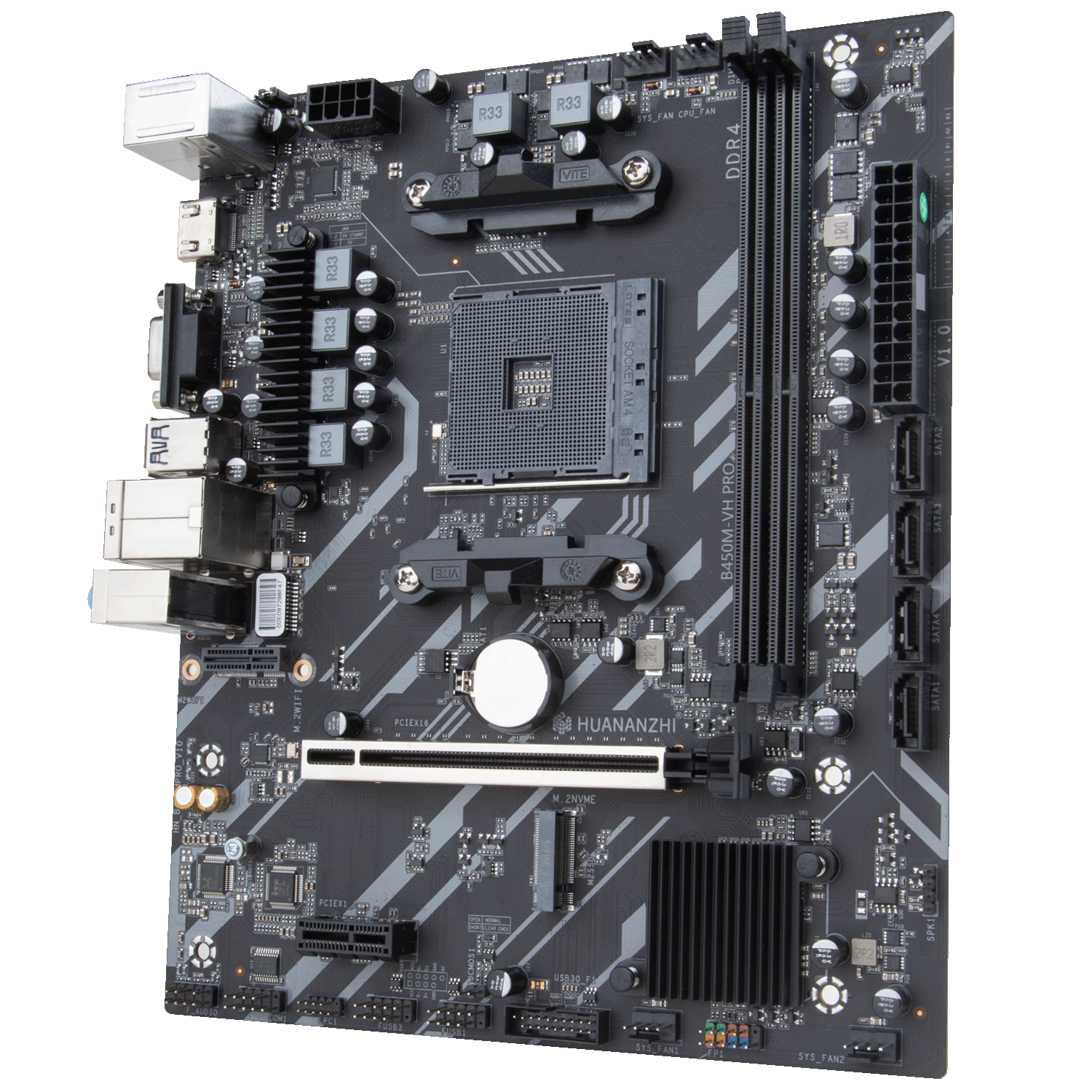

Huananzhi B450M-VH PRO V1.0 AMD Motherboard
Status: In Stock
Brand: HUANANZHI
Key Features:
- · supports AMD AM4 platform processor
- · supports AMD Ryzen1-5 gen processor / Athlon processor
- · supports dual-channel DDR4 3600/3200/3000/2933/2666/2400/2133MHz specification memory
- · 4 x SATA 3.0 6Gbps HDD port
- · 1 x PCI Express 3.0 x16 slot, 1 x PCI Express 2.0 x1 slot
- · 1 x M.2 2280 NVME PCIE X4 3.0&NGFF
- · 4 x USB3.2 Gen1, 1 x HDMI, 1 x VGA port
| Specification | Value |
|---|---|
| Model | B450M-VH PRO V1.0 |
| chipset | AMD B450 series |
| CPU Socket | supports AMD AM4 platform processor supports AMD Ryzen1-5 gen processor / Athlon processor |
| memory slot(s) | 2 x DDR4 memory slot(s) |
| Memory Standard | supports dual-channel DIMM DDR4 3600/3200/3000/2933/2666/2400/2133MHz(depends on CPU) max support 64GB |
| Storageport | 4 x SATA 3.0 6Gbps HDD port |
| Expansion Slots | 1 x PCI Express 3.0 x16 slot, 1 x PCI Express 2.0 x1 slot |
| expansionpor | 1 x M.2 2280 (NVME PCIE X4 3.0&NGFF) 1 vertical mount(s) M.2 WIFI Port / Only supports PCIE protocol in IO port area |
| Onboard Audio | Realtek HD Audio ALC897 |
| Onboard LAN | Realtek Gigabit LAN RTL8111H |
| Power Supplyport | 24PIN+8PIN |
| Fan Headers | 1 x CPU_FAN header can temperature control adjust 1x SYS_FAN header can temperature control adjust 2 x SYS_FAN1/2 header |
| Power Phases | 6 -phase power supply 1 on 2 under MOS strong -ization power supply Layout |
| PCB Layers | 4 Layer |
| Motherboard Specifications | 220*190MM M-ATX form factor |

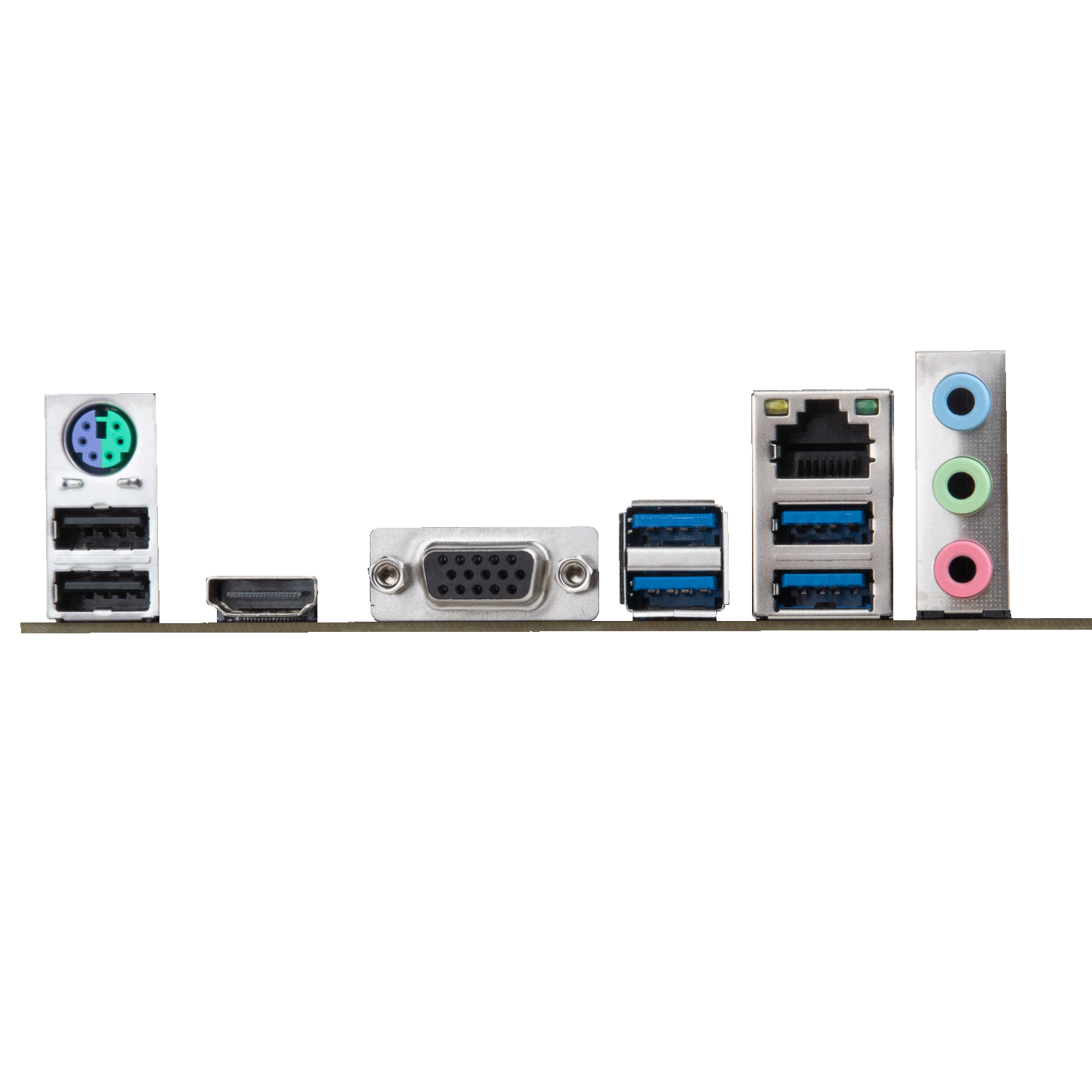

| Rear Panelport | 4 x USB3.2 Gen1，2 x USB2.0，1 x PS/2 Keyboard/Mouse，1 x HDMI 1 x VGA，1 x RJ45 LAN，1 x 3-hole audio 1 vertical mount(s) WIFI Reserved |
| Front Panelport | 1xUSB3.2 Gen1Pin，2xUSB2.0Pin，1xfront audioPin，1xJKBPin，1xLPC Pin，1xSPK buzzer Pin，1xpower/reset Pin |
| Supported OS | Windows10 Windows11 supports AC recovery/scheduled boot/WOL / IPV4/IPV6 diskless boot /CFAN temperature control |
| BIOS | AMI UEFI BIOS |
| Package Contents | 1/ motherboard 1/SATA SATA data cable 1/IO I/O shield 1/ Manual |
Description:
Huananzhi B450M-VH PRO V1.0 AMD Motherboard
The reliable HUANANZHI B450M-VH PRO V1.0 AMD Motherboard, built for smooth performance and everyday stability. This motherboard supports the AMD AM4 platform and works perfectly with Ryzen 1st to 5th generation processors as well as Athlon CPUs, making it a great choice for both budget and mid-range builds. With dual-channel DDR4 memory support up to 3600MHz, you’ll get faster speed for gaming, multitasking, and heavy software. It also offers multiple storage options including 4 SATA ports for HDD/SSD and a high-speed M.2 NVMe slot for super-fast boot and loading times. The PCIe x16 slot lets you install a dedicated graphics card for gaming or design work, while extra expansion slots and USB 3.2 ports ensure easy connectivity for all your devices. HDMI and VGA outputs provide flexible display support for both modern and older monitors.
Huananzhi B450M-VH PRO V1.0 AMD Motherboard price in Bangladesh
Buy Huananzhi B450M-VH PRO V1.0 AMD Motherboard from Rahman Corporation. In Bangladesh, you can get original Huananzhi B450M-VH PRO V1.0 AMD Motherboard at the best price. We have a large collection of the latest Huananzhi projectors to purchase. Order online or visit our showroom to get yours at the lowest price. The Huananzhi B450M-VH PRO V1.0 AMD Motherboard .
What is the price of Huananzhi B450M-VH PRO V1.0 AMD Motherboard in Bangladesh?
The latest price of Huananzhi B450M-VH PRO V1.0 AMD Motherboard in Bangladesh is ৳ 8,800.00. You can buy the Huananzhi B450M-VH PRO V1.0 AMD Motherboard at the best price from our website or visit any of our showrooms.
Huananzhi B450M-VH PRO V1.0 AMD Motherboard
The reliable HUANANZHI B450M-VH PRO V1.0 AMD Motherboard, built for smooth performance and everyday stability. This motherboard supports the AMD AM4 platform and works perfectly with Ryzen 1st to 5th generation processors as well as Athlon CPUs, making it a great choice for both budget and mid-range builds. With dual-channel DDR4 memory support up to 3600MHz, you’ll get faster speed for gaming, multitasking, and heavy software. It also offers multiple storage options including 4 SATA ports for HDD/SSD and a high-speed M.2 NVMe slot for super-fast boot and loading times. The PCIe x16 slot lets you install a dedicated graphics card for gaming or design work, while extra expansion slots and USB 3.2 ports ensure easy connectivity for all your devices. HDMI and VGA outputs provide flexible display support for both modern and older monitors.
No reviews yet.
