HUANANZHI H610M-VH Black Motherboard
Status: In Stock
Brand: HUANANZHI
Key Features:
- HUANANZHI H610M-VH-A/B Motherboard
- · Support Intel LGA1700 Processors
- · 2 x DDR4 Memory Slot ,Max Support 64GB
- · 3xSATA3.0 6Gbps,4xUSB2.0 480Mbps，2xUSB3.2 10Gbps
- · 1xPCIe3.0x16，1xPCIe3.0x1
- · 1xM.2 2280 NVME PCIE X4 3.0 32Gbps@M.2 2280 NGFF SATA3.0 6Gbps，1xM.2 WIFI
| Specification | Value |
|---|---|
| Model | HUANANZHI H610M-VH Motherboard |
| Chipset | Intel H610 |
| CPU Socket | Support Intel LGA1700 Processors |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB |
| Storage Interface | 3xSATA3.0 6Gbps |
| Expansion Slots | 1xPCIe3.0x16，1xPCIe3.0x1 |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 3.0 32Gbps@M.2 2280 NGFF SATA3.0 6Gbps，1xM.2 WIFI |
| Sound Track | Realtek High Definition Audio ALC897 |
| Network Card | Realtek Gigabit Network Card RTL8111H |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，1xSYS_FAN PIN |
| Power Supply | 8Phase Power Supply |
| PCB Layers | 4-layer PCB |
| Dimension | 220*180MM M-ATX |

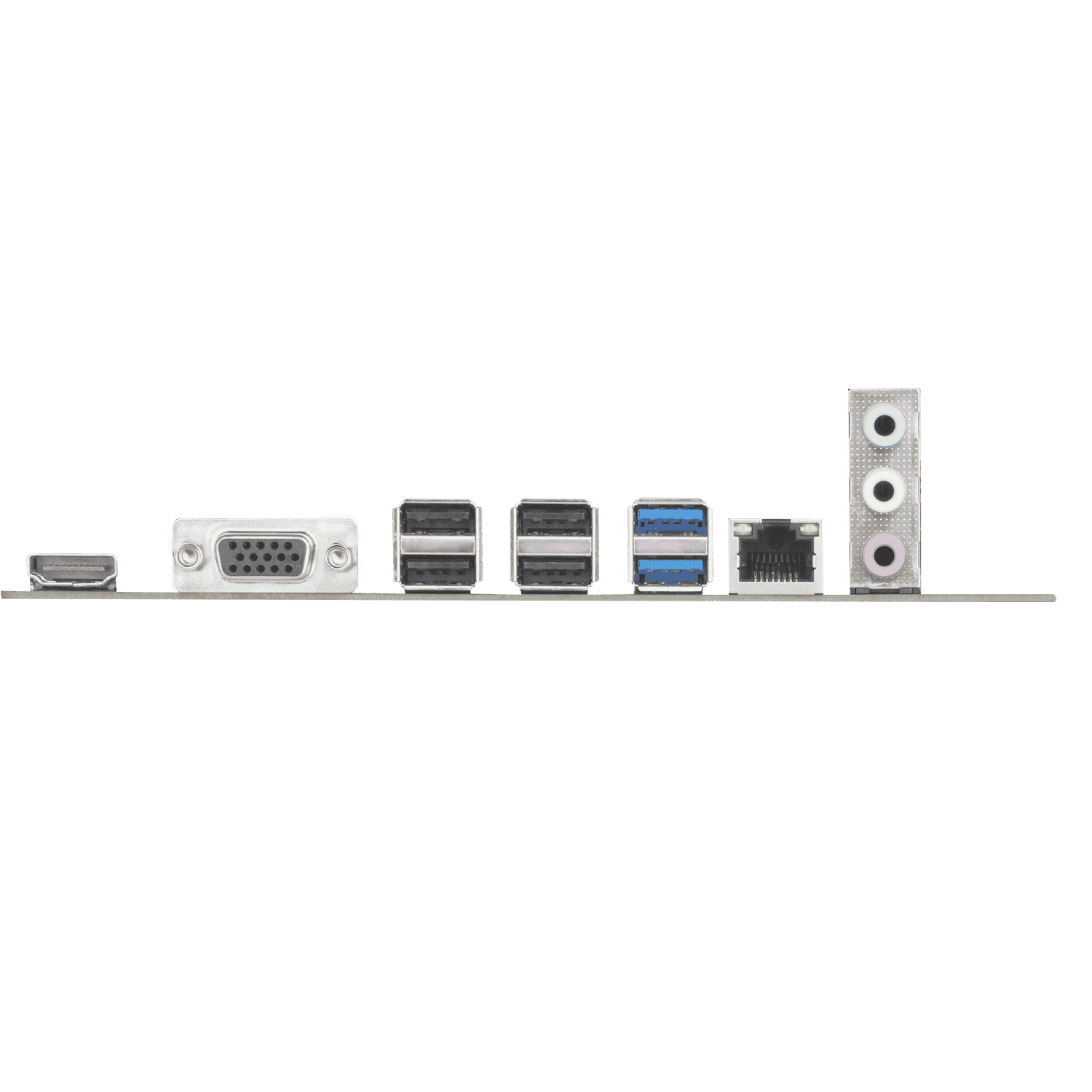

| Rear Panel Interface | 4xUSB2.0 480Mbps，2xUSB3.2 10Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface，1xVGA Interface，1xHDMI2.0 Interface |
| Front Panel Interface | 1xUSB2.0 480Mbps PIN，1xUSB3.2 5Gbps PIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN |
| Support System | Windows10 Windows11 |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description:
HUANANZHI H610M-VH Black Motherboard
Build a powerful and reliable system with the HUANANZHI H610M-VH Motherboard, designed for Intel's latest LGA1700 processors and packed with modern features for high-speed connectivity and smooth performance. Key Features: Chipset: Intel H610 CPU Socket: Supports Intel LGA1700 processors Memory: 2 × DDR4 memory slots Supports dual-channel DDR4 3200/2933/2666/2400MHz Maximum memory support: 64GB Storage Interface: 3 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCIe 3.0 x16 1 × PCIe 3.0 x1 Expansion Interface: 1 × M.2 2280 NVMe PCIe X4 3.0 (32Gbps) 1 × M.2 WIFI slot Audio: Realtek High Definition Audio ALC897 Networking: Realtek Gigabit Network Card RTL8111H Power Interface: 24-Pin + 8-Pin connectors Cooling Support: 1 × CPU_FAN PIN 1 × SYS_FAN PIN Power Supply Design: 8-phase power supply for superior stability PCB: 4-layer durable PCB Dimensions: 220mm × 180mm (Micro-ATX Form Factor) Rear I/O Ports: 4 × USB 2.0 ports (480Mbps) 2 × USB 3.2 ports (10Gbps) 1 × RJ45 Gigabit LAN port 1 × 3-hole audio interface 1 × VGA port 1 × HDMI 2.0 port Front Panel Connectors: 1 × USB 2.0 PIN header (480Mbps) 1 × USB 3.2 PIN header (5Gbps) 1 × Front audio PIN header 1 × COM PIN header 1 × Power On/Restart PIN header 1 × Debug PIN header Supported Operating Systems: Windows 10 Windows 11 BIOS: AMI UEFI BIOS for seamless system configuration and upgrades What's in the Box: 1 × HUANANZHI H610M-VH-A/B Motherboard 1 × SATA Cable
HUANANZHI H610M-VH Black Motherboard price in Bangladesh
Buy HUANANZHI H610M-VH Black Motherboard from Rahman Corporation. In Bangladesh, you can get original HUANANZHI H610M-VH Black Motherboard at the best price. We have a large collection of the latest HUANANZHI projectors to purchase. Order online or visit our showroom to get yours at the lowest price. The HUANANZHI H610M-VH Black Motherboard .
What is the price of HUANANZHI H610M-VH Black Motherboard in Bangladesh?
The latest price of HUANANZHI H610M-VH Black Motherboard in Bangladesh is ৳ 10,800.00. You can buy the HUANANZHI H610M-VH Black Motherboard at the best price from our website or visit any of our showrooms.
HUANANZHI H610M-VH Black Motherboard
Build a powerful and reliable system with the HUANANZHI H610M-VH Motherboard, designed for Intel's latest LGA1700 processors and packed with modern features for high-speed connectivity and smooth performance. Key Features: Chipset: Intel H610 CPU Socket: Supports Intel LGA1700 processors Memory: 2 × DDR4 memory slots Supports dual-channel DDR4 3200/2933/2666/2400MHz Maximum memory support: 64GB Storage Interface: 3 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCIe 3.0 x16 1 × PCIe 3.0 x1 Expansion Interface: 1 × M.2 2280 NVMe PCIe X4 3.0 (32Gbps) 1 × M.2 WIFI slot Audio: Realtek High Definition Audio ALC897 Networking: Realtek Gigabit Network Card RTL8111H Power Interface: 24-Pin + 8-Pin connectors Cooling Support: 1 × CPU_FAN PIN 1 × SYS_FAN PIN Power Supply Design: 8-phase power supply for superior stability PCB: 4-layer durable PCB Dimensions: 220mm × 180mm (Micro-ATX Form Factor) Rear I/O Ports: 4 × USB 2.0 ports (480Mbps) 2 × USB 3.2 ports (10Gbps) 1 × RJ45 Gigabit LAN port 1 × 3-hole audio interface 1 × VGA port 1 × HDMI 2.0 port Front Panel Connectors: 1 × USB 2.0 PIN header (480Mbps) 1 × USB 3.2 PIN header (5Gbps) 1 × Front audio PIN header 1 × COM PIN header 1 × Power On/Restart PIN header 1 × Debug PIN header Supported Operating Systems: Windows 10 Windows 11 BIOS: AMI UEFI BIOS for seamless system configuration and upgrades What's in the Box: 1 × HUANANZHI H610M-VH-A/B Motherboard 1 × SATA Cable
No reviews yet.
