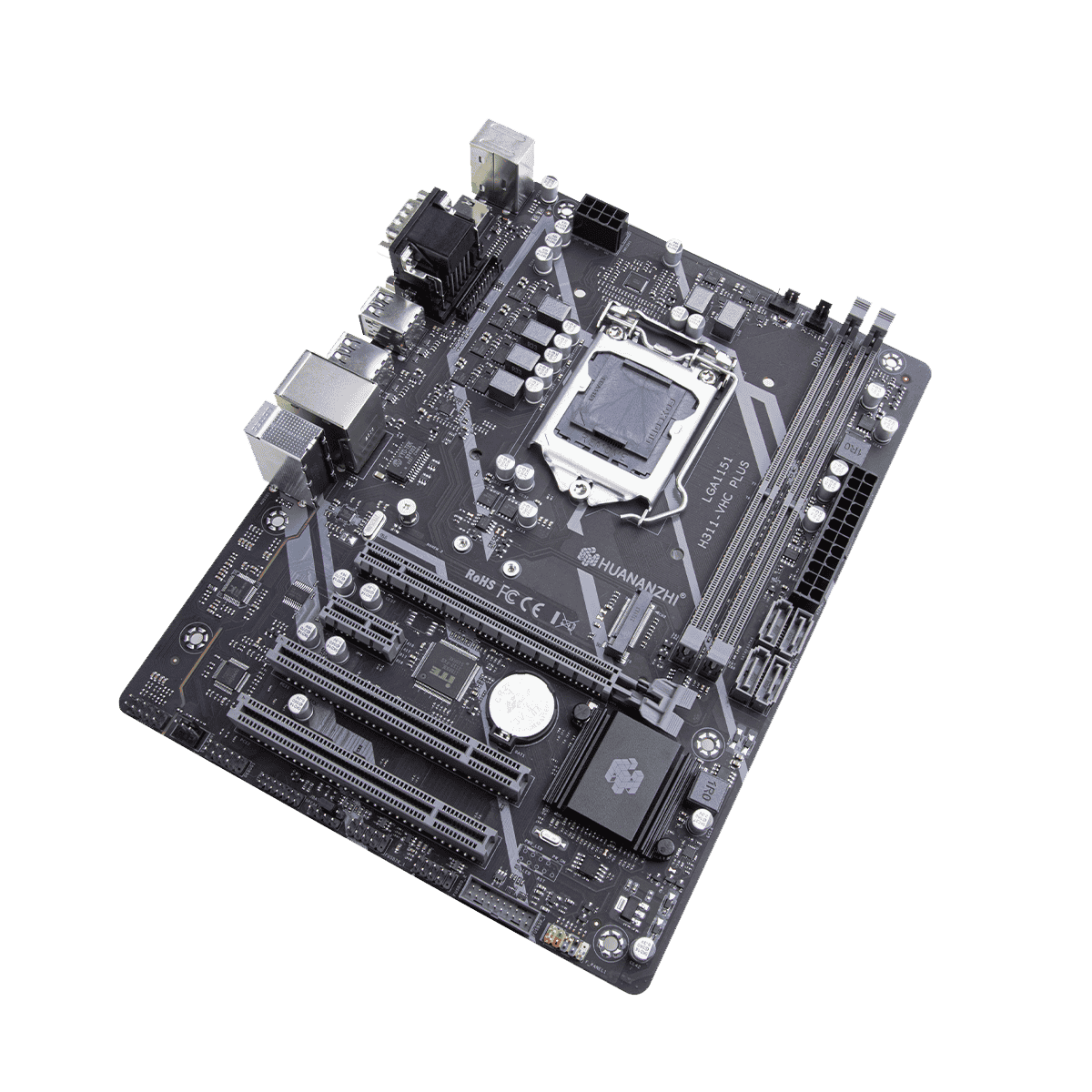

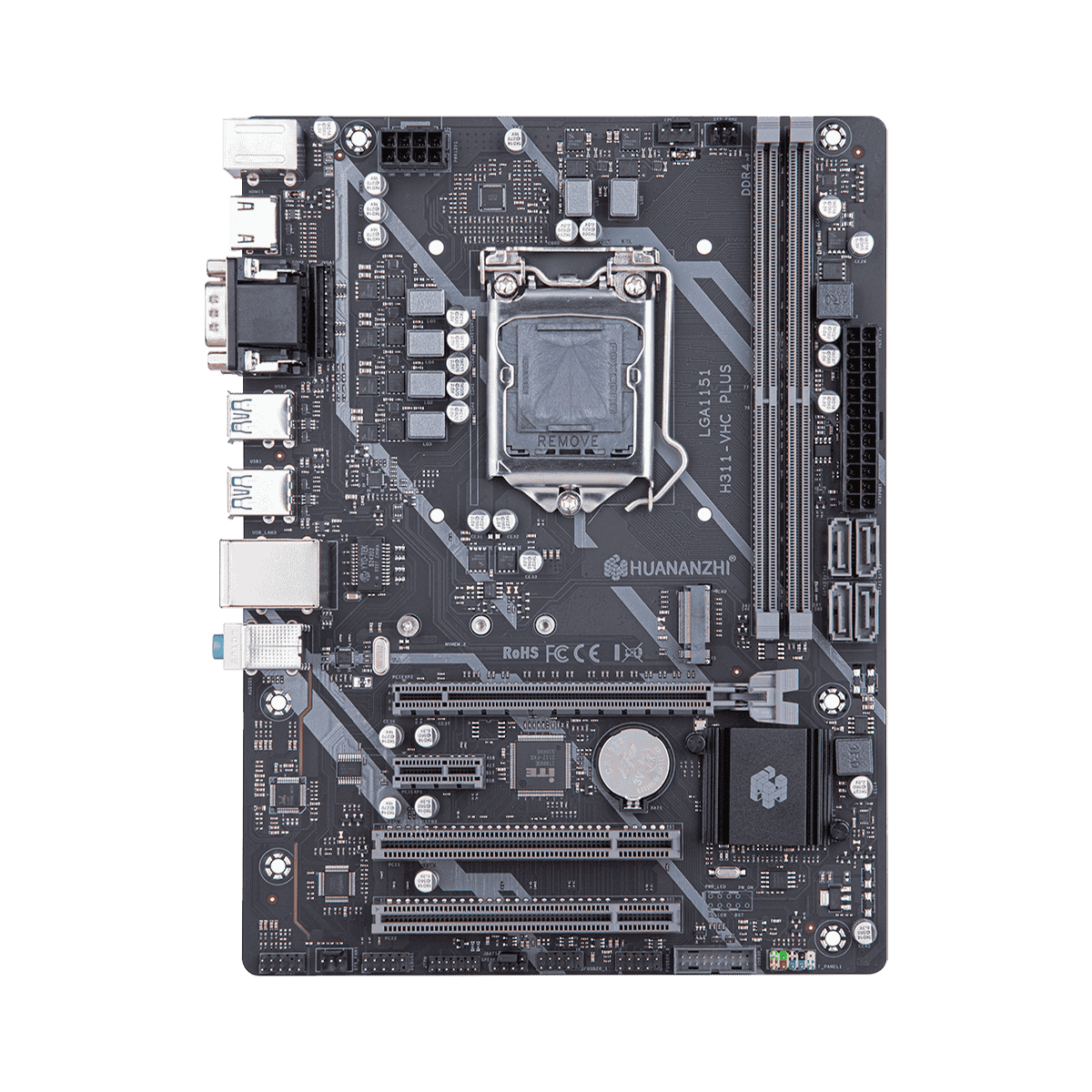

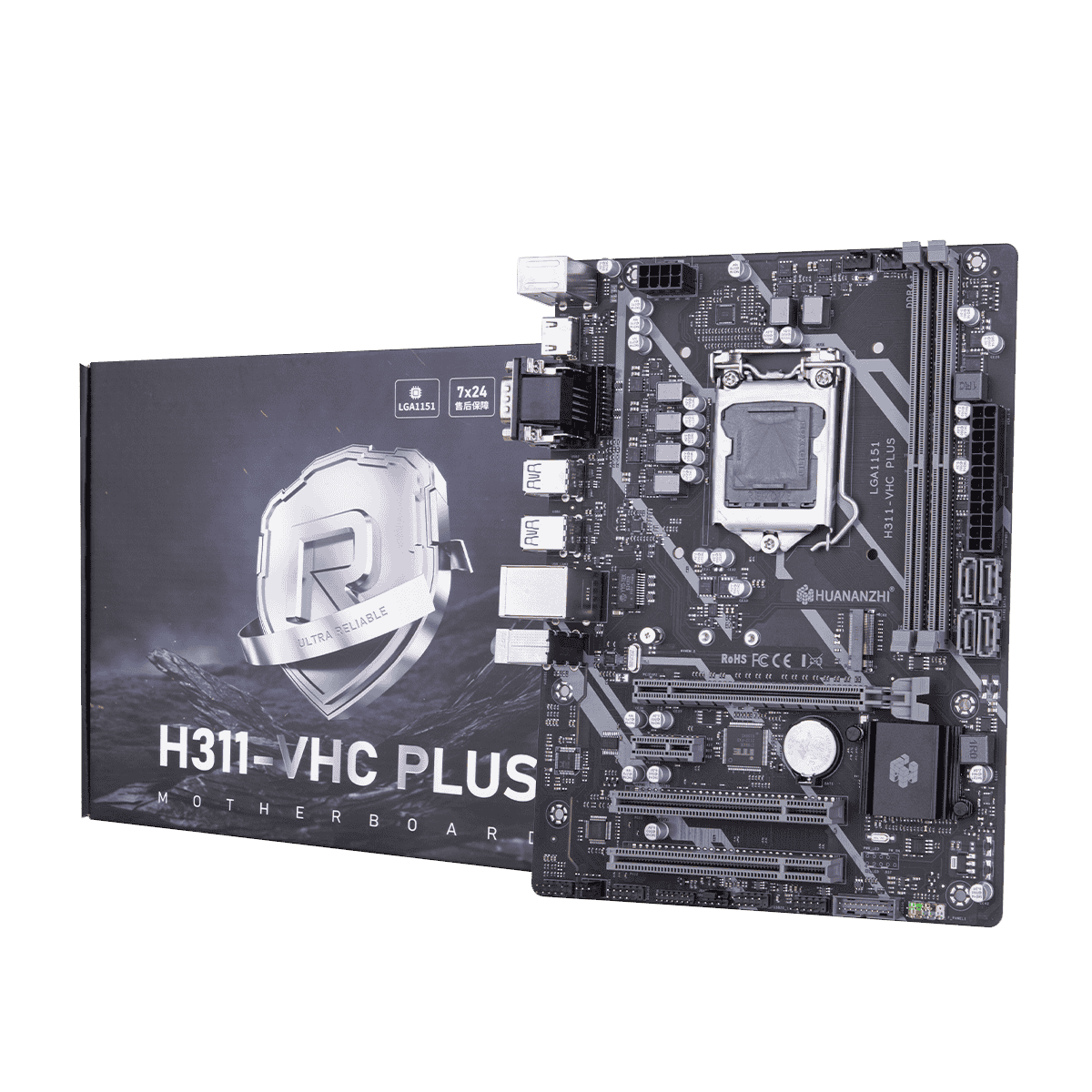

HUANANZHI H311-VHC PLUS Motherboard
Status: In Stock
Brand: HUANANZHI
Key Features:
- · Support Intel LGA1151，Intel 100 Series Chipset
- · 2 x DDR4 Memory Slot，Max support32GB
- · Support Dual channels DDR4 2666/2400/2133/ 1866MHz
- ·1xPCI Express3.0 x16,1xPCI Express 2.0 x1,2xPCI
- · 1xM.2 2280 NVME PCIE X4 2.0
- · 2xUSB2.0，4xUSB3.0，2 xUSB2.0 PIN，1 xUSB3.0 PIN
| Specification | Value |
|---|---|
| Model | HUANANZHI H311-VHC PLUS Motherboard |
| Chipset | Intel 100 Series Chipset |
| CPU Socket | Support Intel LGA1151 Platform Processors |
| Memory Slot | 2 x DDR4 Memory Slot |
| Memory Standard | Support Dual Channels DDR4 2666/2400/2133/ 1866MHz(Decided By CPU)，Max Support32GB |
| Storage Interface | 4xSATA 3.0 6Gbps |
| Expansion Slots | 1xPCI Express3.0 x16,1xPCI Express 2.0 x1,2xPCI |
| Expansion Interface | 1xM.2 2280 NVME PCIE X4 2.0 |
| Sound Track | Realtek High Fidelity Audio |
| Network Card | Gigabit Network Card |
| Power Interface | 24PIN+8PIN |
| FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
| Power Supply | 6-Phase Power Supply |
| PCB Layers | 4-Layer PCB |
| Dimension | 240*180MM M-ATX |

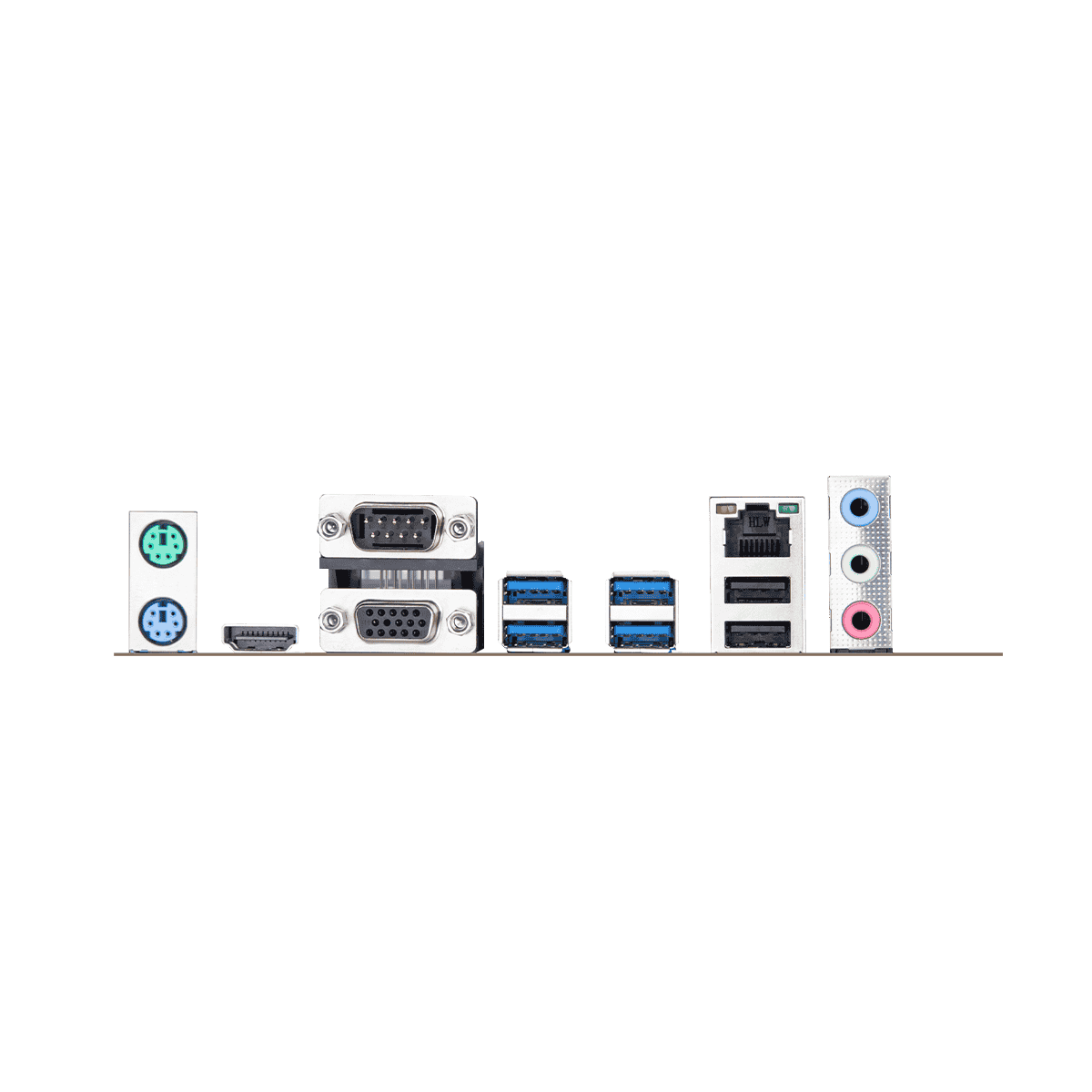

| Rear Panel Interface | 4xUSB3.0, 2xUSB2.0, 1xVGA Interface,1xHDMI2.0 Interface,1xCOM Interface,1x Network Card Interface, 1x3-Hole Audio Interface,1xPS/2 Interface,1xJVGA PIN |
| Front Panel Interface | 2 xUSB2.0 PIN,1 xUSB3.0 PIN,1 x Front Audio PIN,,1 x Debug PIN,1 x JBAT BIOS PIN,1 x TPM PIN, 1 x SPEAK PIN,1 x Power On/Restart PIN |
| Support System | Windows7 Windows10 Windows11（Restore AC Power Loss/Scheduled Power On/Wake-on-LAN/IPV4/IPV6 PXE Boot） |
| BIOS | AMI UEFI BIOS |
| Warrenty | 3 Years |
| Warranty Policy | No Warranty For Physical & Burn Damage |
Description:
HUANANZHI H311-VHC PLUS Motherboard
HUANANZHI H311-VHC PLUS Motherboard Build a reliable, cost-effective system with the HUANANZHI H311-VHC PLUS Motherboard, designed for Intel LGA1151 platform processors, offering a wide range of connectivity and expansion options to power your everyday tasks and more. Key Features: Chipset: Intel 100 Series Chipset CPU Socket: Supports Intel LGA1151 platform processors Memory Support: 2 × DDR4 memory slots Supports dual-channel DDR4 2666/2400/2133/1866 MHz (depends on CPU) Maximum memory support: 32GB Storage Interface: 4 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCIe 3.0 x16 1 × PCIe 2.0 x1 2 × PCI slots Expansion Interface: 1 × M.2 2280 NVMe PCIe X4 2.0 slot for fast storage Audio & Networking: Audio: Realtek High Fidelity Audio Network Card: Gigabit Ethernet Power & Cooling: Power Interface: 24-Pin + 8-Pin connectors Cooling Pins: 1 × CPU_FAN PIN 2 × SYS_FAN PIN Power Supply Design: 6-phase power supply for stability PCB: 4-layer durable PCB Dimensions: 240mm × 180mm (Micro-ATX Form Factor) Rear I/O Ports: 4 × USB 3.0 ports 2 × USB 2.0 ports 1 × VGA port 1 × HDMI 2.0 port 1 × COM port 1 × RJ45 Gigabit Ethernet port 1 × 3-hole audio interface 1 × PS/2 port Front Panel Connectors: 2 × USB 2.0 PIN header 1 × USB 3.0 PIN header 1 × Front audio PIN header 1 × Debug PIN header 1 × JBAT BIOS PIN header 1 × TPM PIN header 1 × SPEAK PIN header 1 × Power On/Restart PIN header Supported Operating Systems: Windows 7 Windows 10 Windows 11 (with advanced power management features like AC Power Loss restore, Wake-on-LAN, and PXE Boot) BIOS: AMI UEFI BIOS What's in the Box: 1 × HUANANZHI H311-VHC PLUS Motherboard 1 × SATA data cable 1 × Warranty card 1 × I/O panel shield
HUANANZHI H311-VHC PLUS Motherboard price in Bangladesh
Buy HUANANZHI H311-VHC PLUS Motherboard from Rahman Corporation. In Bangladesh, you can get original HUANANZHI H311-VHC PLUS Motherboard at the best price. We have a large collection of the latest HUANANZHI projectors to purchase. Order online or visit our showroom to get yours at the lowest price. The HUANANZHI H311-VHC PLUS Motherboard .
What is the price of HUANANZHI H311-VHC PLUS Motherboard in Bangladesh?
The latest price of HUANANZHI H311-VHC PLUS Motherboard in Bangladesh is ৳ 8,700.00. You can buy the HUANANZHI H311-VHC PLUS Motherboard at the best price from our website or visit any of our showrooms.
HUANANZHI H311-VHC PLUS Motherboard
HUANANZHI H311-VHC PLUS Motherboard Build a reliable, cost-effective system with the HUANANZHI H311-VHC PLUS Motherboard, designed for Intel LGA1151 platform processors, offering a wide range of connectivity and expansion options to power your everyday tasks and more. Key Features: Chipset: Intel 100 Series Chipset CPU Socket: Supports Intel LGA1151 platform processors Memory Support: 2 × DDR4 memory slots Supports dual-channel DDR4 2666/2400/2133/1866 MHz (depends on CPU) Maximum memory support: 32GB Storage Interface: 4 × SATA 3.0 ports (6Gbps) Expansion Slots: 1 × PCIe 3.0 x16 1 × PCIe 2.0 x1 2 × PCI slots Expansion Interface: 1 × M.2 2280 NVMe PCIe X4 2.0 slot for fast storage Audio & Networking: Audio: Realtek High Fidelity Audio Network Card: Gigabit Ethernet Power & Cooling: Power Interface: 24-Pin + 8-Pin connectors Cooling Pins: 1 × CPU_FAN PIN 2 × SYS_FAN PIN Power Supply Design: 6-phase power supply for stability PCB: 4-layer durable PCB Dimensions: 240mm × 180mm (Micro-ATX Form Factor) Rear I/O Ports: 4 × USB 3.0 ports 2 × USB 2.0 ports 1 × VGA port 1 × HDMI 2.0 port 1 × COM port 1 × RJ45 Gigabit Ethernet port 1 × 3-hole audio interface 1 × PS/2 port Front Panel Connectors: 2 × USB 2.0 PIN header 1 × USB 3.0 PIN header 1 × Front audio PIN header 1 × Debug PIN header 1 × JBAT BIOS PIN header 1 × TPM PIN header 1 × SPEAK PIN header 1 × Power On/Restart PIN header Supported Operating Systems: Windows 7 Windows 10 Windows 11 (with advanced power management features like AC Power Loss restore, Wake-on-LAN, and PXE Boot) BIOS: AMI UEFI BIOS What's in the Box: 1 × HUANANZHI H311-VHC PLUS Motherboard 1 × SATA data cable 1 × Warranty card 1 × I/O panel shield
